HP DesignJet XL 3800 Multifunction Printer (6 PPM)
HP DesignJet XL 3800 Multifunction Printer (6 PPM)
HP DesignJet XL 3800 Multifunction Printer (6 PPM)
HP DesignJet XL 3800 Multifunction Printer (6 PPM)

HP DesignJet XL 3800 Multifunction Printer (6 PPM)

$350.00/month 60 month FMV lease

Get a Quote

XL3800MFP

In Stock

, , ,

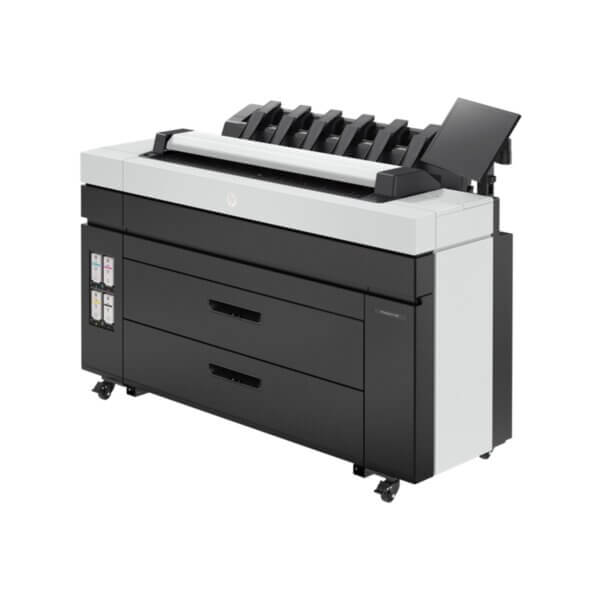

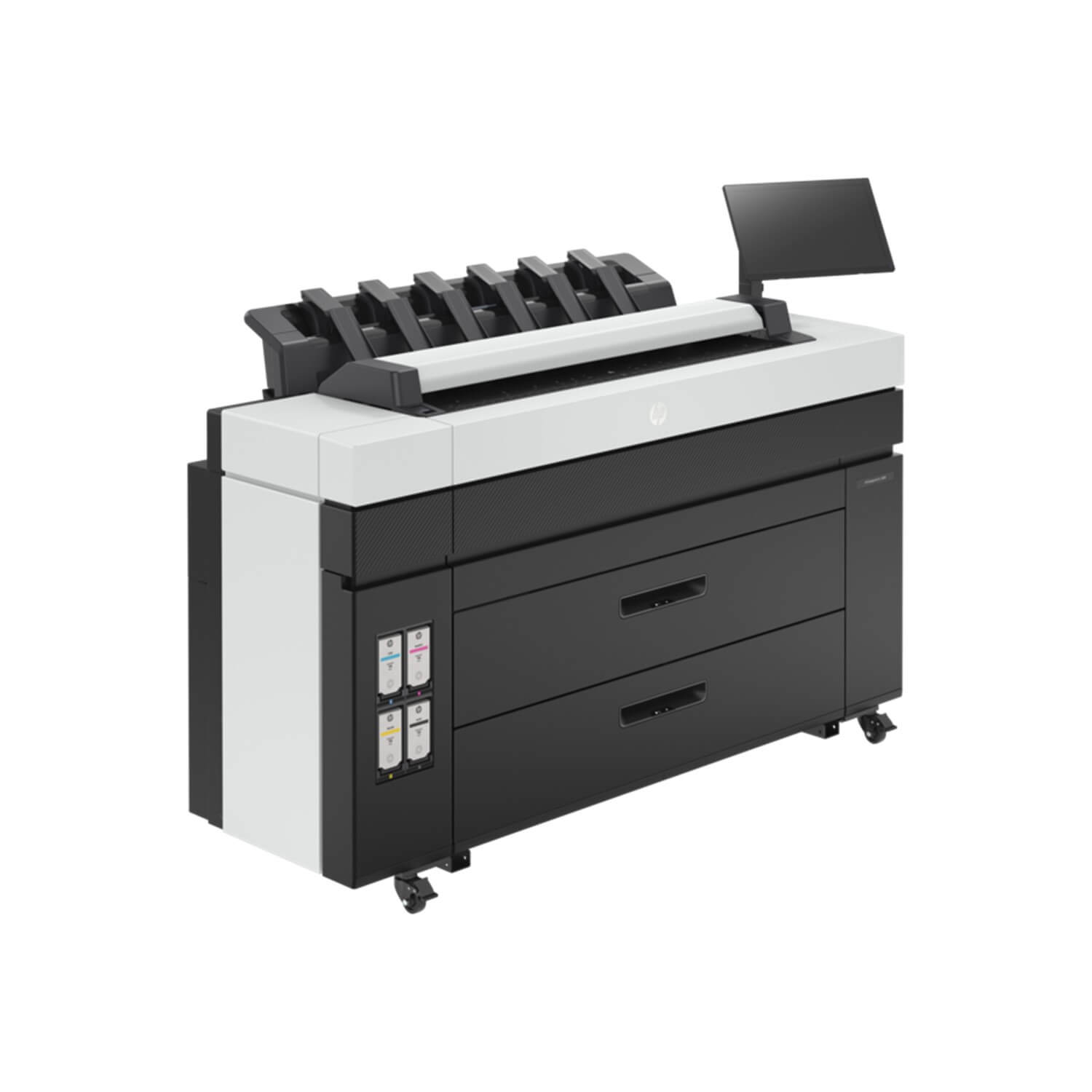

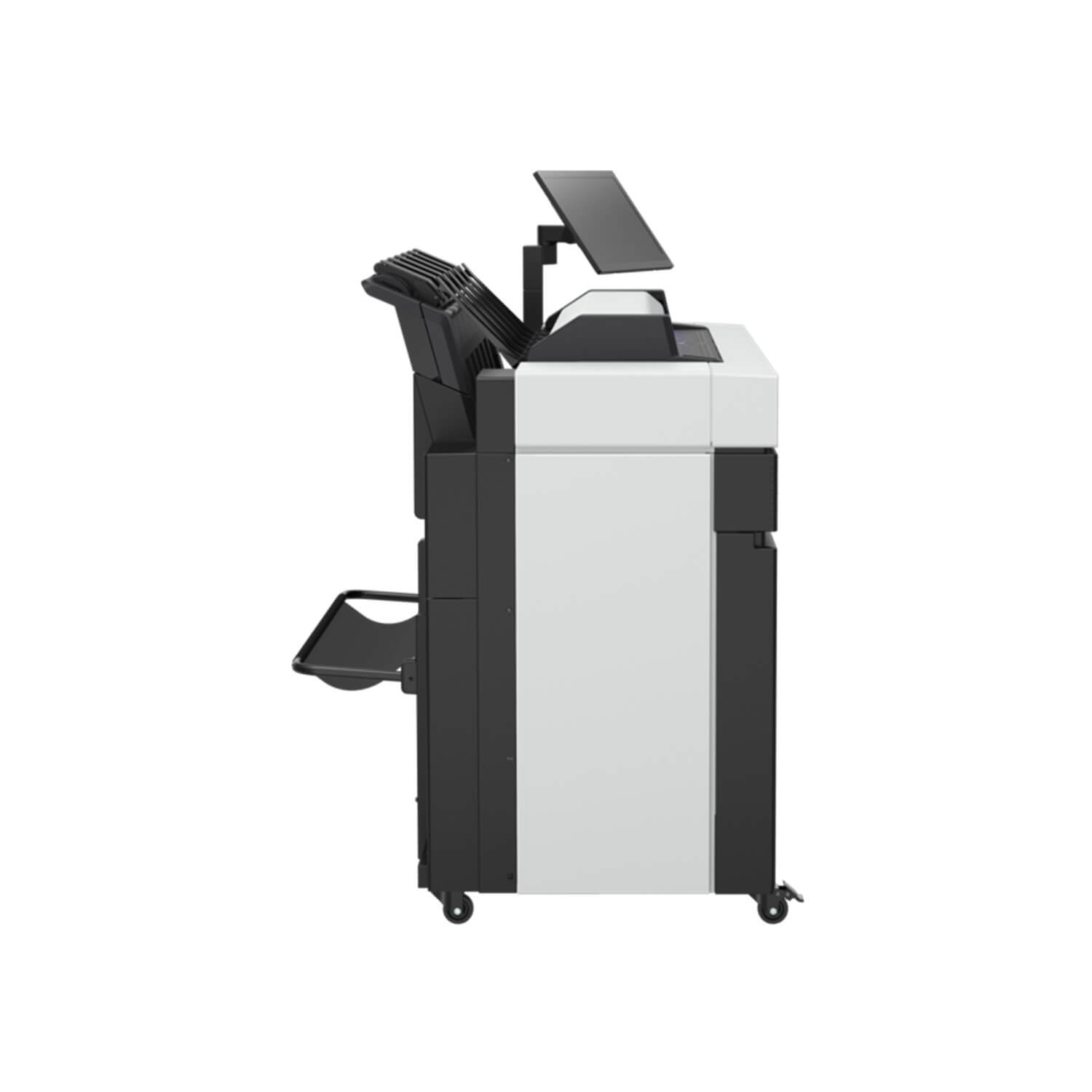

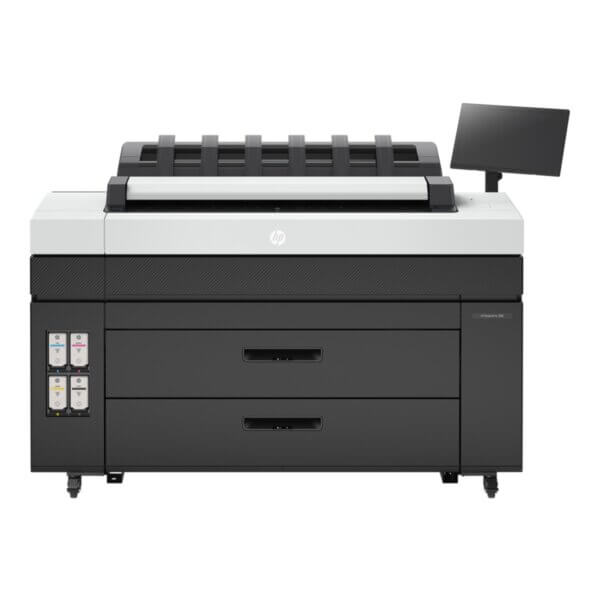

 HP DesignJet XL 3800 Multifunction Printer

The fastest color printer in its class

  • Available in 36 inches
  • Up to 6 A1/D color pages/minute, first page out in 20 seconds¹
  • Maximum roll size: 36 inches, 650 ft, max diameter: 7 inches
  • 500-ml ink supplies
  • Memory: 128 GB (file processing)⁶
  • Connectivity: LAN
  • Solutions: HP Command Center, HP Smart, HP Click, HP Smart Stream

HP DesignJet XL3800MFP Brochure

Data Sheet

About this Product

HP DesignJet XL 3800 Multifunction Printer

PRODUCTIVE

Speed and color in one device

  • Don’t sacrifice productivity—keep projects moving with the fastest color printer at 6D color pages/min in its class1
  • Produce excellent CAD lines and graphics applications in monochrome and color with one large-format device.
  • No time is lost waiting for printouts—this printer delivers the first page out in 20 seconds.2
EFFICIENT

Simple and optimized

  • Give users an easy one-click copy and scan experience via the intuitive 15-in front panel.
  • Optimize space with a large-format printer that is 20% more compact. 3
SECURE

Protect your printer, data, and network

  • Defend your network and data with the world’s most secure large-format printer. 6
  • Protect your printer from cyberthreats with HP Wolf Enterprise.
  • Monitor the status of your printer with Command Center’s centralized dashboard

Product Specifications

Product specifications

Product name
HP DesignJet XL 3800 Multifunction Printer series
Subcategory
Large format
Sub brand
DesignJet XL
Print speed, maximum
360 D/hr; 10 sec/D; 6 D/min[2]
Linear scan speed
Scan: Up to 3 in/sec (color, 200 dpi), up to 10 in/sec (grayscale, 200 dpi); Copy: Up to 6 in/sec (color, 200 dpi), up to 10 in/sec (grayscale, 200 dpi)
Memory
128 GB (file processing)[6]
Internal Storage
256 GB SSD (AES-256 encrypted)
Print quality color (best)
Up to 2400 x 1200 optimized dpi
Print technology
HP Thermal Inkjet
Number of print cartridges
4 (cyan, magenta, yellow, black)
Ink types
Pigment-based (C, M, Y, K)
Line accuracy
±0.1%[3]
Scanner type
Sheetfed, CIS (Contact Image Sensor)
Scan size, minimum
8.2 x 11.6 in
Copy reduce / enlarge settings
25 to 400%, at 1% increment
Finished output handling
Spindle-less drawers, automatic front-loading roll feed, integrated output stacker[5], automatic horizontal cutter; Scanner: straight-through scan paper path for sheet and cardboard originals
Media types
Bond and coated paper, technical paper, film, photographic paper, backlit, self-adhesive, banner and sign materials
Media sizes standard (sheets, rolls)
11 to 36-in width, up to 656-ft length, 3-in core
Roll external diameter
7 in
Media thickness
Up to 19.7 mil
HP ePrint capability
No
Printing path
Direct printing from USB flash drive, print from network shared folder, FTP printing, HP driver for Windows, HP Print Service for Android, Apple AirPrint driver for macOS and iOS, HP Print for Chrome OS, HP Click, HP app for iOS and Android
Connectivity, standard
Gigabit Ethernet (1000Base-T), supporting the following standards: TCP/IP, DHCP/AutoIP (IPv4, IPv6), DHCPv6, SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS Discovery, Embedded Web Server (HTTPS), IPsec, Raw IP printing (9100), LPD, IPP, WS print, NTLM, SMB (v1/CIFS, v2, v3), SSL/TLS, 802.1X authentication (LEAP, PEAP, EAP-TLS), DFS
Print languages
Adobe PDF 1.7, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4
Power consumption
<220 W (printing + scanning), 50 W (ready), <2.2 W[7] (sleep) (<14 W[8] with DFE), 0.2 W (off)
Ecolabels
EPEAT® registered; ENERGY STAR® certified
Operating temperature range
41 to 95°F 5 to 40°C
Operating humidity range
20 to 80% RH
Minimum dimensions (W x D x H)
63 x 24 x 48 in
Package dimensions (W x D x H)
67 x 30 x 50 in
Weight
401 lb
Package weight
507 lb
What’s in the box
HP DesignJet XL 3800 Multifunction Printer, printhead (x6), introductory ink cartridges (x4), scanner calibration sheet, documentation, power cords, maintenance cartridge, stacker, basket (at rear), control panel, monitor arm
Software included
HP Click for Windows and macOS, HP app for Windows, macOS, and mobile, HP Web Jetadmin, HP Security Manager, HP Easy Start, HP Print Scan Doctor, Mobile inOS printing, MPS, HP Command Center
